Low Maintenance Roller Locking Device
Maximum security,
Minimum maintenance
Result of
the experience
The new CRBM locking device is the result of more than 130 years experience in investigation, manufacturing, installation and maintenance of fixed railway equipment.
Design and advantages
Concept

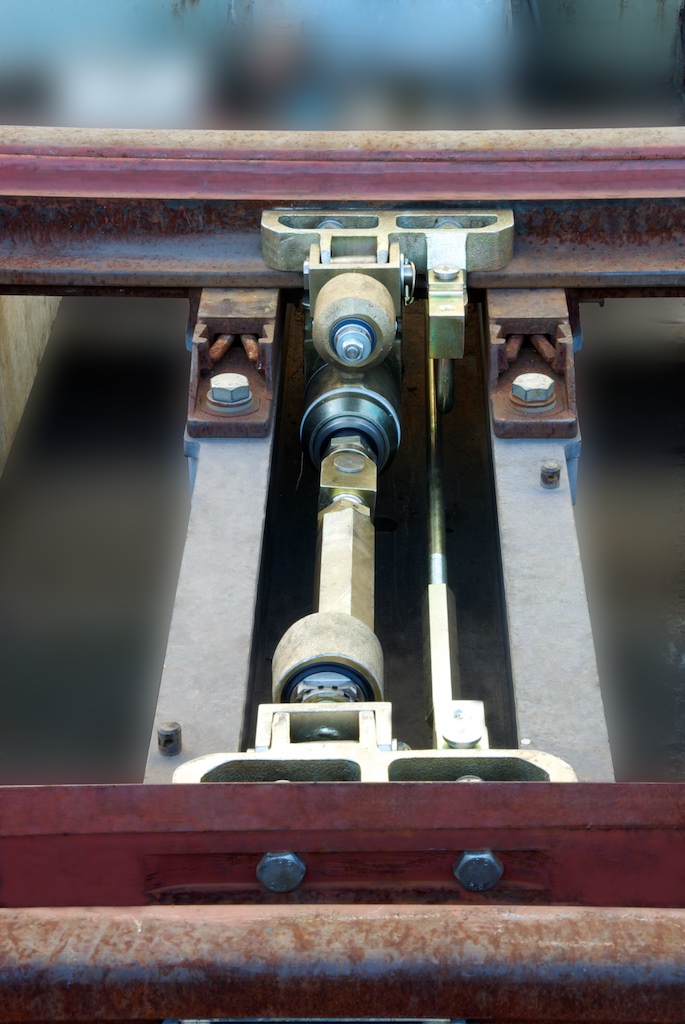

The CRBM Locking Device consists of two independent bodies united by a cardan. Each one of the bodies is fixed to the stock-rail and moves and locks the corresponding tongue-rail in place.
.
.
Locking force control
The locking force between tongue- and stock rails is realized with disc springs, able to develop great pressure using minimum space -until 300kg. Easy regulation just turning a nut.
Absorption of dilations
Absorbs easily the dilatations of the tongue-rail.
The upper-side of the CRBM rotate with respect to the lower part and transfer with the tongue-rails.
Installation
Easy installation by only one person. Compact construction, only 116 mm wide. It is possible to fix to the stock-rails without drilling.
Minimum maintenance
All mecanisms are sealed against water and dirt, all parts slide and rotate on low friction material. It hardly needs any maintenance.
Maximum security
Even in case of breaking the tie connecting the drive to the bolt, or the intermediate strap connecting both bolts, tongues continue locked in its positions.
Adaptable
CRBM is adaptable to all track widths and all kinds of paths: high speed, conventional rail, tram or subway, Heavy Haul, etc.
Synchronous motion
The movement of the two tongues occurs simultaneously. The device locks the engaged and also the open tongue.
Anti-lift mechanism
CRBM is equipped with an anti-lift and anti-oscillations mechanism, which significantly improves overall security.
Parmeters of the CRBM
Track Gauge
Alternatives:
- 1,000mm
- 1,435mm
- 1,668mm
- …
Rail Profile
Alternatives:
- 54E1
- 60E1
- 136RE
- …
Track Inclination
Alternatives:
- 1: ∞
- 1:40
- 1:20
- …
Fixing of the locking device to the stock-rail
Alternatives:
- AL (Web.With holes in the rail foot)).
- PA (Railfoot. Without holes in the rail).
Opening of the tongue-rail
Alternatives:
- 70
- 110
- 120
- 140
- 160
- …
Engine stroke
Alternatives:
- 180
- 120
- …
Checking Appendix
Alternatives:
- Yes (Sí integrated)
- No (Non integrated)
